Lab EnvironmentΒΆ

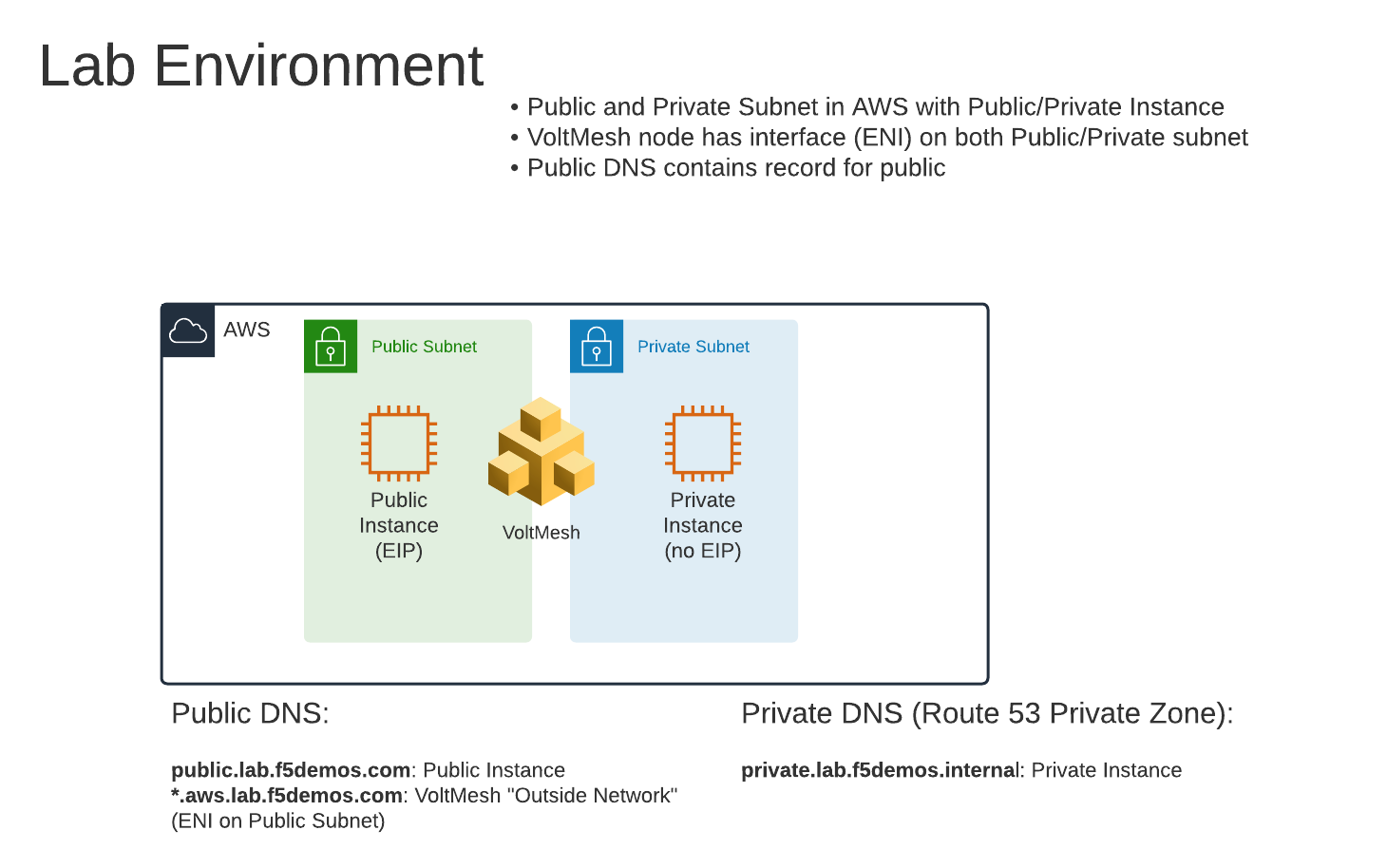

During the lab you will be accessing a shared AWS Lab Environment.

There are 3 EC2 instances that are deployed.

  1. Public EC2 Instance (with an Elastic IP attached)

  2. Private EC2 Instance (using VoltMesh for NAT GW)

  3. VoltMesh Instance (interface/ENI on both public/private subnets)

There are also both public/private DNS records that have been created.

../_images/testdrive-volterra-waf-labenvironment.png
